Introduction

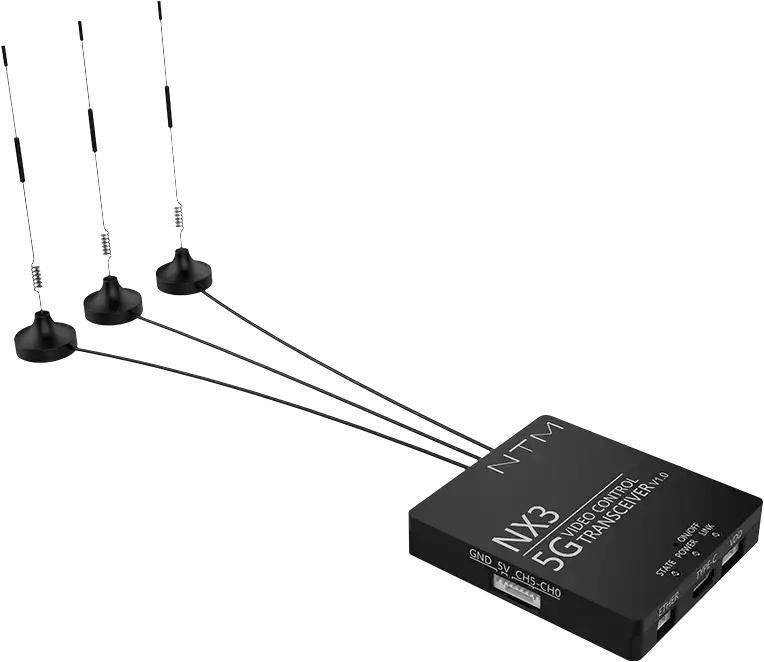

NTM 5G All in One Transceiver Module(NX3)is a state of the art Ready to Use 5G IOT connecting gateway. It is powered by Qualcomm's most advanced X62 5G chip solution, enabling real-time imaging and control applications. Utilizing advanced 5G mobile communication network, NTX3 delivers un-compromised 5G performance, and is ideally suited for products requiring real-time signal acquisition and monitoring, real-time image transmission, and real-time control of remote devices. NX3 offers wide expansion capabiity, easy development, compact size, and low power consumption.
  • 1080P/4K

    1080P/4K

    Ultra HD Video
  • Plug & Play

    Plug & Play

    Shorten development time
  • Data <30ms Video<100ms

    Data <30ms Video<100ms

    The industry's lowest latency
  • 5G/4G Public Network Access

    5G/4G Public Network Access

    Safe, reliable and agile
  • 50×50×8mm 23g

    50×50×8mm 23g

    Light and compact
  • 1.5w

    1.5w

    Ultra-low power consumption

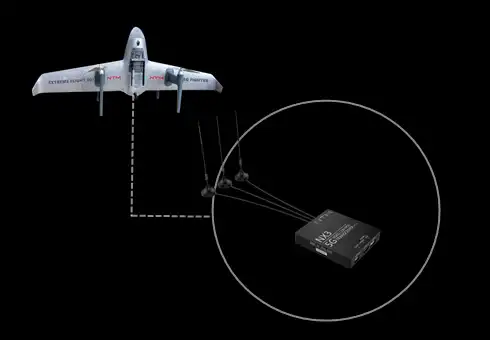

Application Block Diagram

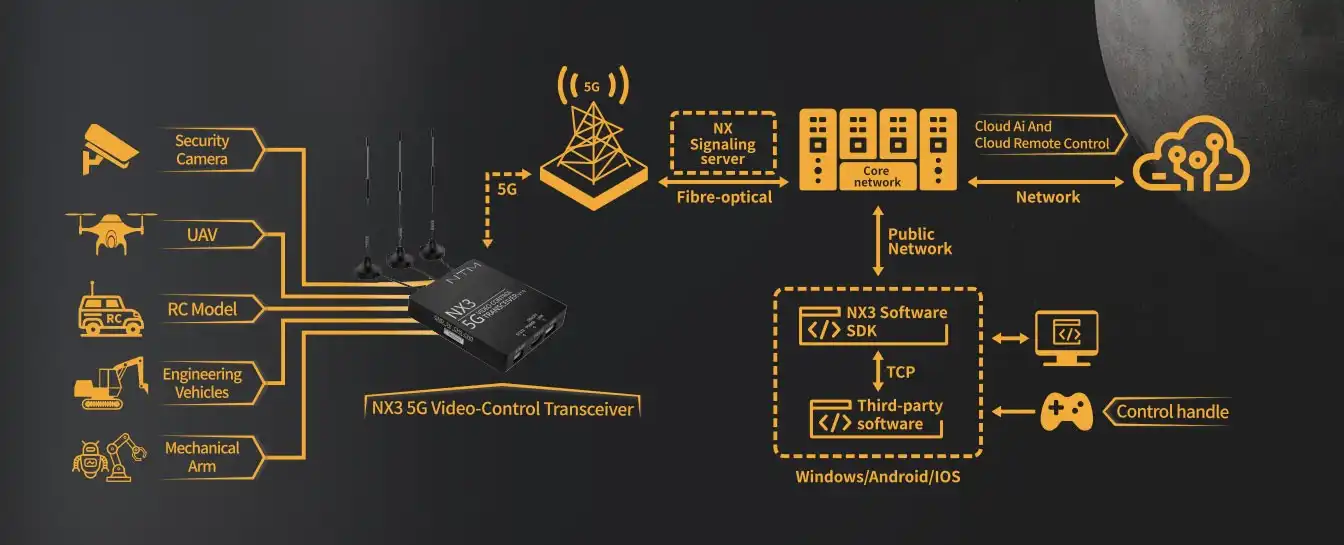

Application Block Diagram

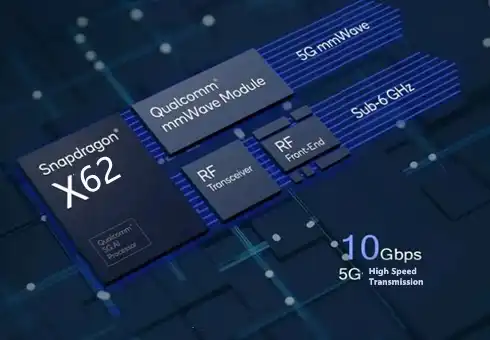

Leading Edge 5G Chipset

Adopt QUALCOMM X62 chipset, featuring high level of integration, unsurpassed size and weight advantages, superior communication performance and system stability.

Advanced Protocol

Adopt Unique Transport Protocol NTRTC protocol, achieving the industry's lowest latency and providing network flexibility and transparency:
- Minimum image transmission latency <100ms, minimum control delay <30ms.
- No data server or fixed IP required. Direct and transparent data transport through the public network.

Ready to USE

Ready to USE

Plug & Play by connecting camera, device, and PC software only , allowing significantly shortened 5G product development time. No additional software and hardware development are required. Additional customization and development can be supported.

Excellent RF Performance

Excellent RF Performance

Optimized 5G RF design provides stable performance in 5G weak signal areas.

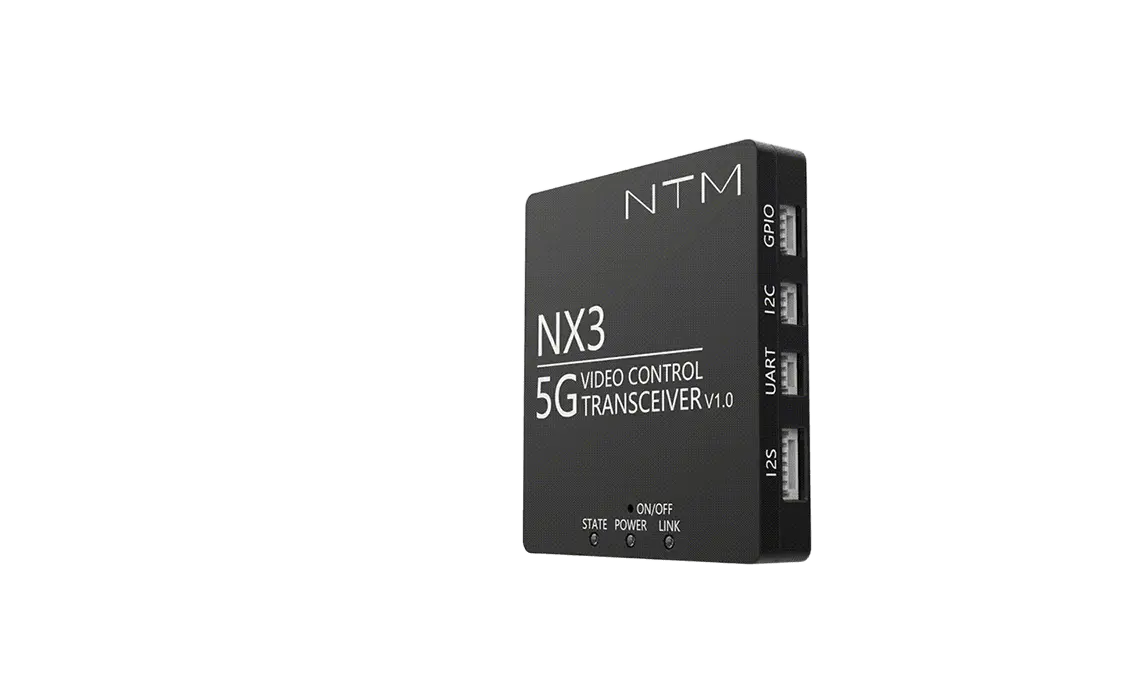

5G All in One Transceiver
Module(NX3)
  • Precise Positioning

    Built-in GPS positioning, Beidou nevigation, G
    sensor

  • Two-Way Audio

    Support 5G audio transmission, support two-way voice intercom

  • Built-In Storage

    Built-in T card storage, work log, video storage network query

  • Ultra Slim

    The average power consumption is 1.5W, the size is small 50mm X50mm X10mm, and the weight is only 50g.

  • Flexible Expansion And Strong Adaptation

    The expansion interface supports USB3.0, UART, I2C, PWM, and GPIO; the transmission protocol supports RTSP, RTMP, UDP, and TCP and can be adapted to different types of remote devices.

  • Cloud Empowerment, Multi-Terminal Control

    ompatible with industry cloud platforms, cloud control, and cloud computing systems for cloud AI control, supporting cloud image transmission control, web image transmission control, PC image transmission control, and mobile image transmission control

Specification
5G Sub-6G n1/n2/n5/n7/n12/n13/n14/n25/n26/n29/n30/n38/n41/n48/n66/n71/n77/n78/n79
LTE-FDD B1/B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71
LTE-TDD B38/B41/B42/B43/B46*/B48
WCDMA  B1/B2/B4/B5
Sub-6G SA 2.4Gbps(DL)/1Gbps(UL)
Sub-6G NSA 3.4Gbps(DL)/600Mbps(UL)
LTE 1.6Gbps(DL)/200Mbps(UL)
HSPA+ 42Mbps (DL)/5.76Mbps(UL)
Processor Qualcomm X62 ARM Baseband Chip
Processor Configuration Minimum system, low power consumption, high performance required for 5G protocol.
Video Transmission Protocol NTRTC, point-to-point real-time video transmission protocol.
Control Transfer Protocol SCTP, Real Time Control Transport Protocol
Video Transmission Latency Public network point-to-point transmission latency Min <98ms.
Control Transmission latency Public network point-to-point transmission latency Min<30ms.
Video 1 Transmission Capability Ethernet supports RTSP, RTMP protocol, up to 4K/30fps
Video 2 Transmission Capability USB3.0, extended support for H.264/H.265 encoding, 1080P/60 frames
Audio Transmission Capability Extended support two-way voice intercom Maximum sampling rate 44.1Khz
Network Port One , Up to 4, Support transparent transmission
USB3.0 One, Type C
UART One,Support serial port transparent transmission
I2C One
GPIO 4
PWM 6 support RC vehicles control
I2S Support two-way voice intercom
Location Services GPS, Galileo, Glonass, QZSS, BeiDou,G Sensor
SIM Card Mico Sim
Storage Card T card, support real-time image storage, log storage
Built-In Driver Microsoft Windows Win7/Win8/Win10/Linux/Android
Operating Voltage 4.2V/5V
Power Consumption 1.5W
Volume 50X50X10mm
Weight PCBA:23g,with casing:50g
Operating Temperature -30 degrees to 70 degrees
Certification CCC*/JATE*/TELEC*/CE(RED)*/SRRC*/CTA*/RoHS*/REACH*/RCM*
Embedded Software Capabilities 1. RC vehicle PWM Generator; 2. NTRTC video transmission ;3. 5G RF parameter monitoring ; 4.Serial port transparent transmission function.
PC Software Function 1. Video decoding display:Windows/Android/web,Support 4-channel video real-time synchronous display; 2.Audio and video intercom:windows /Android; 3. API support for game rendering engines; 4. RC vehicle Gamepad Remote Control; 5. Supports various drones ground stations such as QGC; 6. Support DJI M300, M30 drone 5G control.
Cloud Software Function Support user-customized cloud platform system.
